24byj48 24V DC high gear ratio Small Bipolar Stepper Motors prices
BYJ stepper motor features:
1. High and low temperature resistance -40°C to 140°C. Lifespan over 10,000 hours.
2. Noise level as low as 40 dbs.
3. Anti-interference, unaffected by external factors and step loss.
4. Low-speed: 1 to 40 revolutions per minute.
The reasons to Select Xingmai Motor:
1. Salt spray (corrosion resistance) up to 8 hours
2. Working life over 10,000 hours
3. Low noise, below 40 decibels
4. High-temperature resistance, working temperature 80-90 degrees.
5. High-performance neodymium iron boron (rare earth) magnets, smaller size, light weight, and strong magnetic properties.
24BYJ-48 Stepper Motor Datasheets:
| Model | Voltage(V) | Resistance(Ω) | Step Angle (1-2P) /(2-2P) | Frequency(PPS) | Pull-in Torque(mN.m) | Self-locating Torque(mN.m) | No-loading pull-in frequency(PPS) | No-loading pull-out frequency(PPS) |
| 24BYJ48 | 5 | 20 | (5.625°/64) /(11.25°/64) | 100 | ≥78.4 | ≥34.3 | ≥500 | ≥900 |
| 12 | 50 | (5.625°/64) /(11.25°/64) | 500 | ≥150 | ≥49 | ≥500 | ≥900 |
| 12 | 70 | (5.625°/64) /(11.25°/64) | 500 | ≥13 | ≥49 | ≥500 | ≥900 |
| 12 | 200 | (5.625°/64) /(11.25°/64) | 400 | ≥78.4 | ≥34.3 | ≥500 | ≥900 |
| 12 | 70 | (5.625°/16) /(11.25°/16) | 400 | ≥19.6 | ≥19.6 | ≥500 | ≥900 |
| 12 | 70 | (5.625°/32) /(11.25°/32) | 400 | ≥49 | ≥19.6 | ≥500 | ≥900 |
| 12 | 50 | (5.625°/37) /(11.25°/37) | 500 | ≥100 | ≥34.3 | ≥500 | ≥900 |
| 24 | 200 | (5.625°/64) /(11.25°/64) | 400 | ≥150 | ≥34.3 | ≥500 | ≥900 |
| 24 | 300 | (5.625°/64) /(11.25°/64) | 400 | ≥80 | ≥34.3 | ≥500 | ≥900 |
Applications:
Smart Home: Curtain motors, air conditioner fan blades, smart door locks, etc.
Office Equipment: Printer paper feed, scanner platform movement.
Consumer Electronics: DVD drives, camera pan/tilts, vending machine knobs.
Teaching Experiments: As an entry-level stepper motor, it is often used in microcontroller control teaching.
Voltage, resistance, cable length, shaft length (flattened position), reduction ratio, and terminals are customizable.
24BYJ-48 DIMENSIONS: mm
24BYJ-48 Stepper Motor Torque Curve:
24BYJ-48 Series Applications:
Workshop :
Features:
step accuracy and resolution. low vibration and noise.
Stable performances, efficiency; Excellent quality and long service life.
Widely used on fan, warm air blower, electric heaters, burn oven, stage lighting equipment, microwave oven, Christmas and other kind of electrical appliances.
This reducer motor features a 4 phase 5 wire configuration, ensuring stable performances and durability with its excellent quality ABS.
Low noise meets step resolution, making it essential component for driven task.
Can you provide customized services for stepper motors? What customization options are available?
A: Yes, we support OEM/ODM customization. The customizable options include:
Mechanical customization: Shaft length/diameter, mounting hole position, lead wire length/connector type, gearbox reduction ratio adjustment.
Electrical customization: Rated voltage/current, holding torque, step angle, inductance/resistance parameter tuning.
Appearance customization: Shell color, laser marking of customer brand logo.
What information do I need to provide for customized motor development?
Please provide the following core requirements:
End application scenario (e.g., smart curtain, medical analyzer) and load characteristics (rotational/linear load, load torque).
Key technical parameters (required voltage, step accuracy, noise limit, operating temperature range).
Installation space dimensions (maximum allowable motor length/diameter).
Certification requirements for target markets (e.g., CE, RoHS, UL, FDA).
Can you provide free technical support for motor matching and integration?
Yes. Our technical team provides free one-stop matching solutions:
According to your application requirements, recommend the most suitable motor model and matching driver.
Provide wiring diagrams, installation dimension drawings, and driver parameter configuration guides.
Offer online debugging guidance if you encounter integration problems during use.

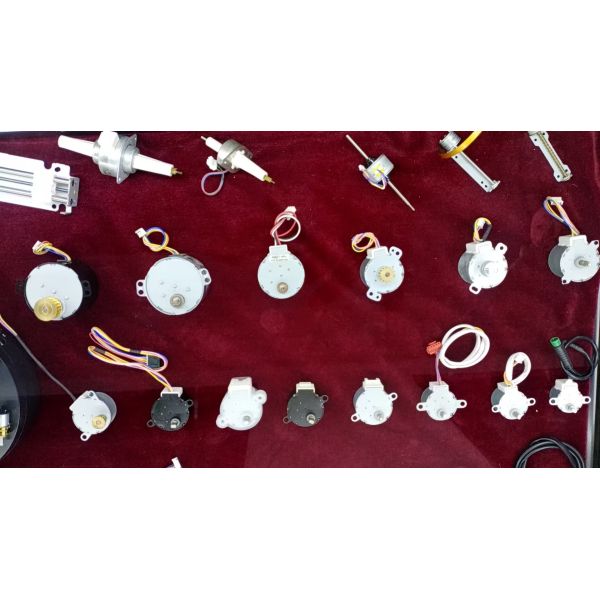

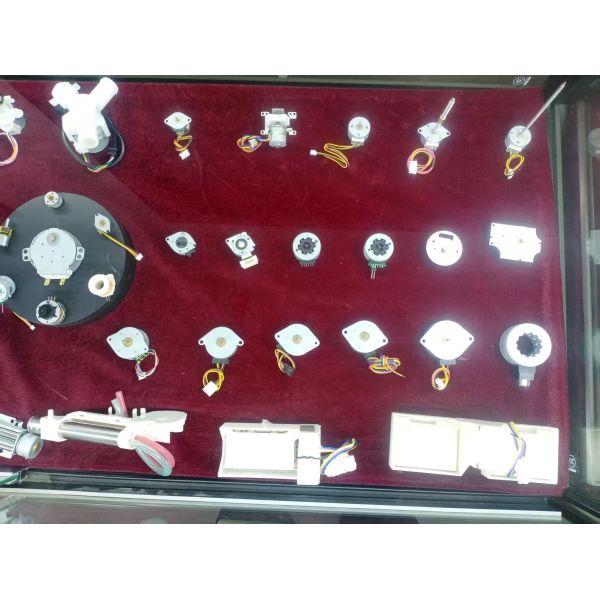

Part of samples:
